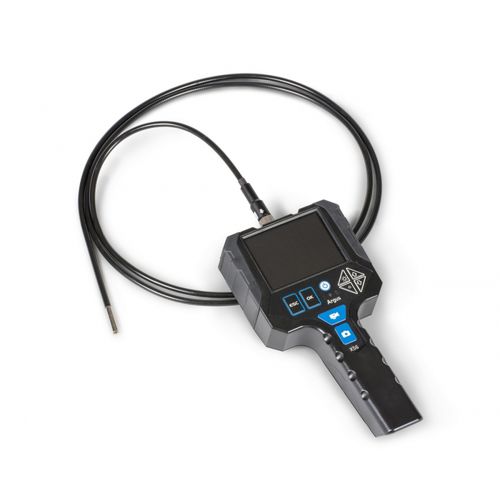

Flexible videoscope ORIONrigidindustrialfor automobiles
Add to favorites
Compare this product
Characteristics
- Construction
- flexible, rigid
- Applications
- industrial, for automobiles, engine, for vehicles, HVAC
- Other characteristics
- portable, LCD display, interchangeable probe
- Diameter
Max.: 16 mm
(0.63 in)Min.: 2.8 mm
(0.11 in)- Cable length
Max.: 30 m
(98'05" )Min.: 1 m
(3'03" )
Description
- Probe diameters Ø 2.8mm (0.110") to 16mm (0.629”)
- Articulating and Non-articulating Insertion Probes
- nFlexible, Rigid and Flex-and-stay Probes
- Working Lengths from 1 meter (3.3') up to 30 meters (98')
- High-resolution CMOS video camera chip
- Camera Chip Resolution: 4mm - 100,000/5.5mm and up - 450,000 pixel
- 3.5” color LCD display, with 720x640 pixel resolution
- Image (JPEG )/Video (MPEG4) file capture
- Variety of imaging options including grid, mirror functions, zoom-in/zoom-out
- AV output (PAL/NTSC selectable)
- SD memory card for file capture/storage
- USB port to transfer data to a PC
- LED Illumination, with variable intensity adjustment
- Working temperature -20° to +60°
- Compact portable design
- Optional Mirror Tips for Ø5.5mm Probes: 70° / 90° / 110°
