Wall-mount enclosure ALNX seriesrectangularaluminumfor general purposes
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- aluminum
- Application
- for general purposes
- Protection level
- IP66, explosion-proof, for harsh environments, IECEx, ATEX
- Width
Max.: 310 mm
(12.2 in)Min.: 66 mm
(2.6 in)- Height
Max.: 600 mm
(23.6 in)Min.: 60 mm
(2.4 in)- Depth
Max.: 180 mm
(7.09 in)Min.: 46 mm
(1.81 in)
Description

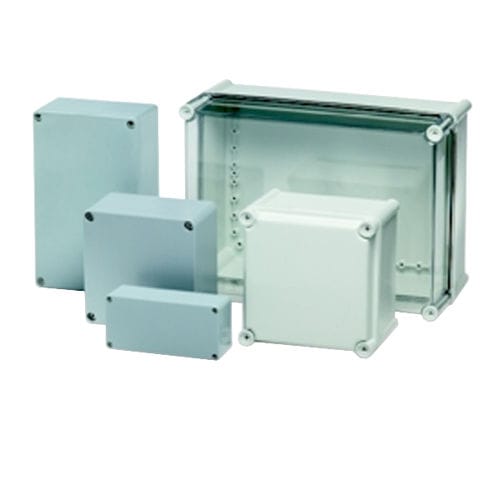

EX enclosures are specially made for use in hazardous environments. They are designed, manufactured and tested to international standards. All certificates, such as ATEX/IECEx, are issued by the manufacturer under license from a test authority. EX enclosures are made of either aluminium, polycarbonate or polyester.
- Aluminium from 66*60*46 to 310*600*180 mm
- Polycarbonate from 188*188*130 to 558*378*180 mm
- Polyester from 75*80*55 to 405*400*120 mm
AL: (ALNX) II 2GD; Ex e IIC Gb; Ex tb IIIC Db IP66
PC: (FEX) IP 54
P: (PEX) II 2GD; Ex e IIC Gb; Ex tb IIIC Db IP66
