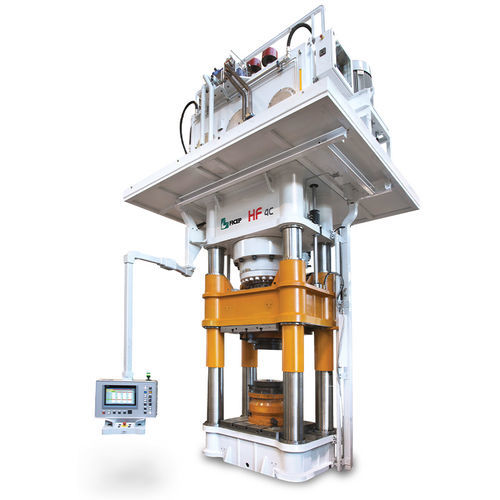

Electro-hydraulic press HF-4C series
trimming4-columnCNC

electro-hydraulic press
electro-hydraulic press
electro-hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
electro-hydraulic
Function
trimming
Structure
4-column
Control
CNC
Other characteristics
vertical
Force

Max.: 12,500 kN

Min.: 2,000 kN

Stroke

500 mm, 650 mm, 800 mm
(19.685 in, 25.591 in, 31.496 in)

Working speed

Max.: 120 mm/s

Min.: 30 mm/s

Description

The HF-4C series hydraulic press is designed specifically for preforming of long parts. It is also widely used for deburring, trimming and extrusion. Thanks to the 4 columns structure, it guarantees the possibility to access to the dies area on all 4 sides. This allows for a wide range of composition in full automatic forging lines. The light weight of the ram combined with the special upper mobile die holder raises this series to the top level of high performance multi preforming presses. HYDRAULIC UNIT Powerful hydraulic unit with proportional valves and special manifold design for the highest performance in the forging industry. REDUCED OVERALL SIZE The hydraulic power pack placed on the top of the press reduces the overall dimensions allowing high process speed. This reduces the contact time between the work piece and the dies, thus increasing the life of the dies. FAST RAM RETURN Thanks to the cylinder design and special high performance hydraulic valves, the lifting speed of the ram is very fast, thus reducing the working cycle time and energy consumption.
