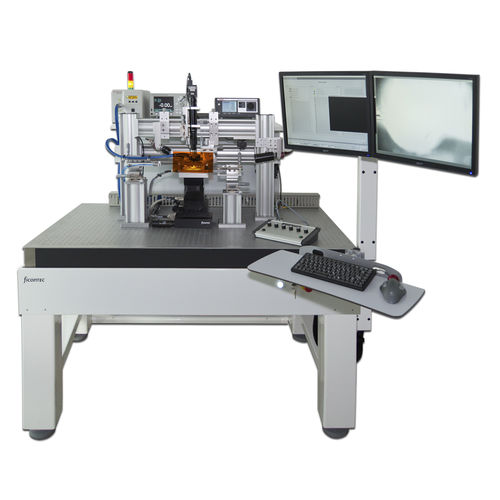

Waveguides and optical fiber array alignment system FL300

Machines of the FiberLine FL family offer everything you need for fi ber alignment applications. They can be confi gured for assembly tasks as well as for testing or qualifi cation purposes. Their modular and expandable concept provides fi tness for future products. The active alignment philosophies make them the ideal tool for Silicon Photonics packaging and fi ber attach tasks. The easy to use yet powerful machine software „Process Control Master“ helps to further automate your production. Dispensing Module / UV Curing For highest degree of automation the FL300 machines can be equipped with an epoxy delivery module. The module is controlled from within the assembly process. It is available with or without a UV curing functionality Alignment Laser When attaching fi bers to passive optical component such as PDs, PLCs, or AWGs alignment lasers are needed for active alignment. The wavelengths needed can be chosen from the typical bands 1310 nm or 1550 nm. For fi ber arrays multiple lasers can be controlled simultaneously. All common fi ber connector types are available.
