3-axis CNC machining center GTF/Qverticalgantryfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Machined material
- for aluminum, for steel, for cast iron
- Associated functions
- milling
- Other characteristics
- high-performance, modular
- X travel
2,700 mm, 4,500 mm, 6,000 mm, 8,000 mm
(106.3 in, 177.17 in, 236.22 in, 314.96 in)- Y travel
2,200 mm, 3,500 mm
(86.61 in, 137.8 in)- Z travel
1,000 mm, 1,400 mm, 1,500 mm, 1,800 mm
(39.37 in, 55.12 in, 59.06 in, 70.87 in)- Power
55 kW, 65 kW
(74.78 hp, 88.38 hp)
Description

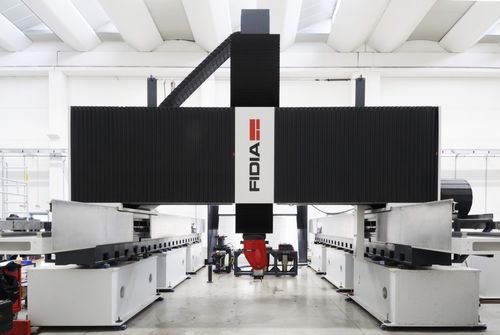

FIDIA GTF/Q4 is a modular line of high-performance upper Gantry machines. Specifically designed to guarantee accurate machining of a wide range of materials, from steel and cast iron, to aluminum and fiber-reinforced composites.
This new version /Q4 is based on a particular design of the carriage, housing a vertical ram with 4 linear guides. The option of integrating an automatic head change, furtherly extend the application domain. The supporting base structures are made of reinforced concrete, to improve the damping factor and the overall thermal stability.
The ram can integrate single FIDIA bi-rotary heads "M5A", "M5S", "M5D" or alternatively a head change platform suitable for hosting different milling and / or turning equipment.
