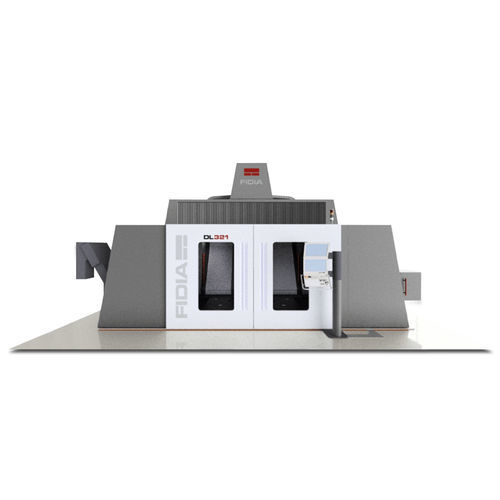

3-axis CNC machining center DL321/Mverticalgantryfor light alloys
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Machined material
- for light alloys
- Number of spindles
- 2-spindle
- Applications
- for the automobile industry, for molds, for the aeronautical industry
- Other characteristics
- compact, with linear motor
- Z travel
1,250 mm
(49.21 in)
Description
The monolithic cast-iron base includes the work-piece table. This set-up allows to install the machine on a lighter foundation slab, or directly on an industrial floor, depending on the maximum workpiece weight to be handled.
DL321/M - Features
Z axis travel - 1250mm (49”)
X Y axis feed rate - 60m/min (2362ipm)
Z axis feed rate - 30m/min (1180ipm)
Workpiece clamping area dimension - 3000x2000mm (118” x 79”)
Milling spindles - M5A/55-24, M5A/65-15
Catalogs
No catalogs are available for this product.
See all of FIDIA‘s catalogs
