Safety light curtain SLVT series

multibeamthrough-beamIP65

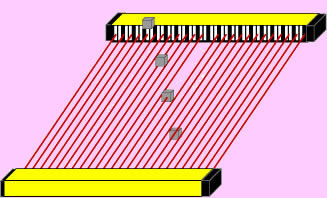

The Area Sensors for controlling and counting of the SLVT series are used for detecting of small objects(>7,5mm) in a sensor field of up to 1,9m x 24 m. for counting falling parts from uncertained positions in wide areas suspended trolleys paint shops Properties Fast response time from 1.2 ms, depending on the length Objects from 7.5 mm detected scanning lengths 100 mm up to 1900 mm in steps of 100 mm 24m operating range Compact extruded aluminum housing Universal mounting by sliding nuts Small contactor or valve connected directly Antivalent short circuit proof solid state outputs protective system IP 65 Special version with serial output for shape recognition of parts
