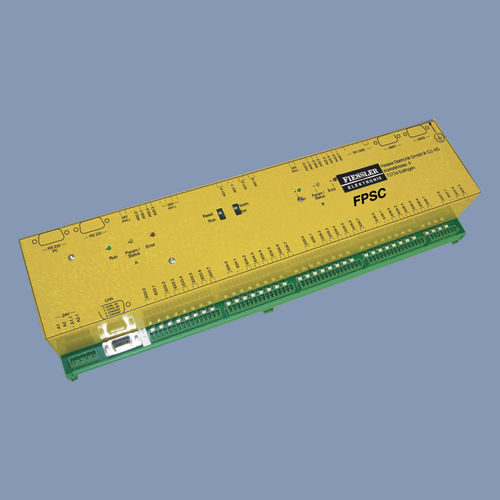

DIN rail programmable logic controller FPSC series

with integrated I/OmodularSIL 3

The FPSC Fiessler Programmable Safety Center is a programmable electronic safety for personal protection, i.e. for safety functions. The FPSC complies with the highest safety requirements: SK1 through SK 4 according to EN 954-1 SIL 1 through SIL 3 according to EN IEC 61508 PL a through PL e according to prEN 13849-1 The product family FPSC provides maximum flexibility within its hardware and software structure. The FPSC - AD version offers the possibility to connect decentralized I/O modules via the implemented safety bus. This guarantees a modular system design that offers flexibility therefore reducing the costly and often elaborate configuration of the safe system bus. The safety-related functions are programmable by using pre-assembled and tested software modules. The chaining is made by simple assignment of input , i.e. output adresses. Intermediate data are stored in the temporary storage. There are various ready-to-use software modules at your disposal. For the communication with a superior control, i.e. for the operating sequence control or technology control, a serial interface is provided. The transfer of data for visualizing as well as the transfer of machine-relevant data can de realised via this interface. The simple snap-on mechanism for fastening the items on the DIN rail in the switch cabinet considerably reduces the installation expenditure of the items of the product family.
