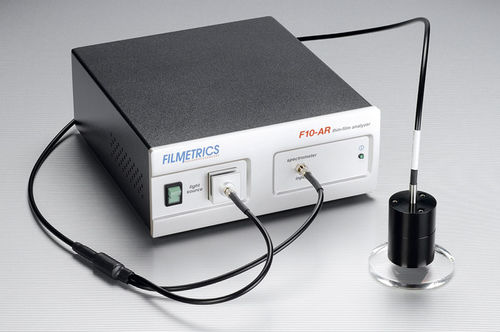

Stationary thickness gauge F10-AR

coatingbenchtop

The F10-AR is the first instrument designed for simple, affordable measurement of ophthalmic anti-reflection coatings. Available at a fraction of the cost of most instruments in use today, it contains several proprietary advances that allow line operators to make conclusive readings in seconds, and with only minutes of training. Minimum, maximum, and average reflectance can be go/no-go tested over any number of user-defined wavelength ranges. A special algorithm allows for the correction of localized reflectance distortions caused by hardcoat layers. Our proprietary AutoBaseline feature results in vastly increased baseline intervals and fives-times better accuracy than other fiber-probe-based reflectance measurement systems. Measure hardcoat thickness 0.25-15µm with our optional UPG-F10-AR-HC software upgrade. Measuring hardcoat thickness even in the presence of AR layers is no problem.
