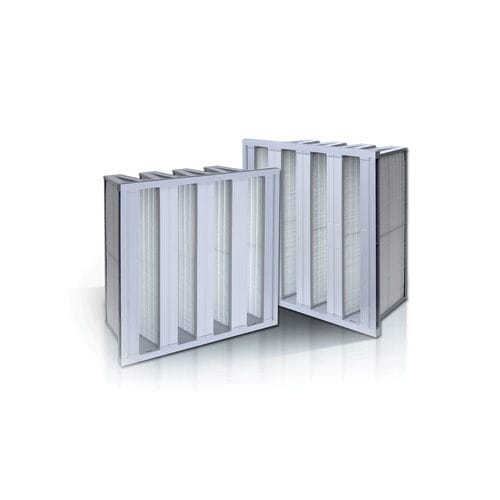

Air filter GV8 series

panelindustrialfor clean rooms

The side covers of the filter are made from rigid plastic with integrated water outlet slopes on both the up and down stream sides. Connection slots for the insertion of the pre-filter frame HFA-# are also included. These features, in combination with the reinforced profiles, provide the maximum space for the filter media pack and obtain a high mechanical strength. Testing Each HEPA-filter is tested and packed in accordance with American Standard IEST-RP-CC-001.3 (HEPA and ULPA Filters) or in accordance with the European Standard EN 1822-1, 4&5 (Testing filter elements HEPA and ULPA efficiency and scan method) or other customer requested testing. Features Efficiencies of 95% up to 99.999% High quality glass fibre media High burst pressure (> 2000 Pa) Rigid full plastic frame Filter height only 292mm High quality standard due to Quality Assurance System Highly economical through high final pressure drop Usable in two flow directions Filter tested according to BS EN 1822 Standards EN 1822 ISO 9001:2000
