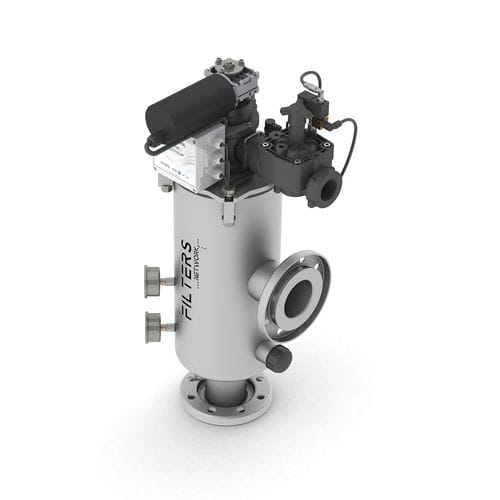

Water filter Ecoklin - EK1808
basketstrainerwire mesh

water filter
water filter
water filter
water filter
water filter
water filter
water filter
water filter
water filter
water filter
water filter
Add to favorites
Compare this product


Characteristics

Designed for
water
Filtration element
strainer, basket, wire mesh, microfiber
Filtration method
pressure, vacuum
Applications
for chemical applications, industrial, process, for the food industry, low-pressure, suction, for HVAC installations, for water treatment, with swing-arm, safety, for hydraulic applications, heavy-duty, coarse pre-filtration, for pipelines, for industrial washing, for pump, automotive, discharge, for cutting machine, irrigation, for heavy-duty applications, for HVAC
Material
stainless steel, varnished steel, zinc-plated
Mounting
flange
Cleaning
continuous, backwash, self-cleaning, washable, with radial scraper cleaning
Fluid specification
process water, rainwater, for seawater, for raw water
Other characteristics
compact, automatic, high-intensity, high-performance, high-efficiency, with backflush system, metal mesh, high-efficiency, low pressure, high-capacity, modular, tubular, high-flow, vertical, anti-corrosion, horizontal, duplex, cylindrical
Operating pressure

Max.: 8 bar
(116.03 psi)

Min.: 2 bar
(29.008 psi)

Filtration size

Max.: 2,000 µm

Min.: 20 µm

Flow

Max.: 65 m³/h
(2,295.453 ft³/h)

Min.: 25 m³/h
(882.867 ft³/h)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 5 °C
(41 °F)

Filtration surface

Max.: 3,500 cm²
(542.5 in²)

Min.: 1,800 cm²
(279 in²)

Description

Imagine a filtration system that combines efficiency, reliability, and innovation, designed to meet the needs of long-lasting installations. This is Ecoklin, our superior quality and reliable automatic self-cleaning filter. Born from the vision of offering an uncompromising water filtration solution, Ecoklin is the result of years of research and development conducted by a team of industry experts. Our mission is clear: “To create a self-cleaning filter that not only guarantees excellent performance but is also easy to maintain and capable of adapting to different operating conditions.” Thanks to its versatility, Ecoklin is suitable for a wide range of installations, with a filtration range from 20 to 2000 microns. The heart of Ecoklin is the advanced “suction scanner” technology, developed through years of research and experience. This innovative system allows for the rapid cleaning of the filter element without interrupting the water flow. Additionally, the differential pressure (Δp) control system, combined with the adaptive radial swing suction-scanner system, enables significant water recovery, removing suspended solids much more quickly and efficiently. The filter element, optimized over the years, makes it a durable and long-lasting device, capable of operating even in particularly harsh conditions. Used in industrial plants, irrigation systems, aqueducts, and many other applications, Ecoklin has proven to be a reliable filter that, when applied correctly, frees installers from concerns about system shutdowns, lengthy, and laborious maintenance.
