Wastewater pump MIA serieselectricdiaphragmindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater
- Operation
- electric
- Technology
- diaphragm
- Domain
- industrial
- Applications
- handling, metering
- Material
- PP, PVC, PTFE
- Protection level
- ATEX
- Other characteristics
- compact, mechanical, actuated
- Flow
Max.: 1,000 l/h
(264.17205 us gal/h)Min.: 0 l/h
(0 us gal/h)- Pressure
8 bar
(116.03 psi)
Description

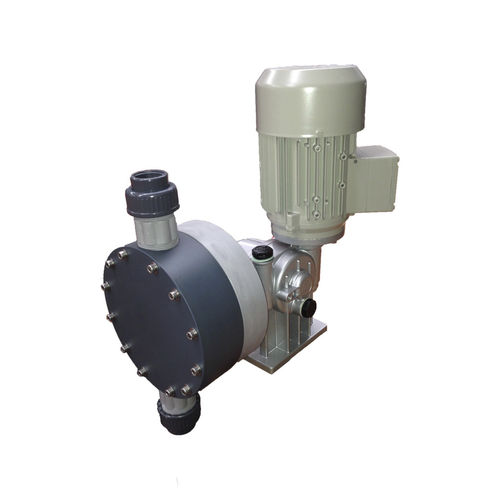

MIA Series
Mechanical Diaphragm Pump
Flow rate: 0-1000 l/h
Pressure: up to 8 bar
Accuracy: +/- 2% of rated flow from 10 to 100% of rated flow
Mechanically actuated PTFE diaphgram
Safe: leak free operation, no external moving parts
Robust, compact, reliable design
Easy handling with minimum maintenance
0-100% Stroke adjustment while running or steady
Standard micrometric manual adjustment 1mm per turn
Optional electric actuator, 4-20 mA or 0-10 V command with manual override
Optional motor with integrated inverter for frequency control
Silver painted aluminium casing
Standard liquid end executions : S.S. 316 L, PP, PVDF
Customized executions available: PVC, PTFE, Hastelloy C276, etc…
ATEX executions
Double valve assemblies
UNI/ANSI flanges
High viscosity executions
Special motors
