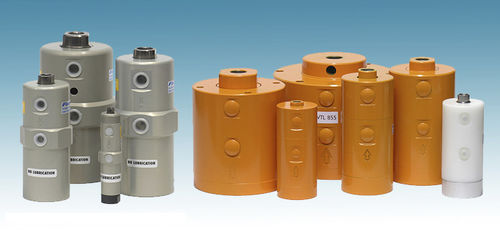

Ram vibrator FAL, VTL
pneumaticlinearmulti-product

ram vibrator
ram vibrator
ram vibrator
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
linear, ram
Product applications
multi-product, bulk products, conveying, for food products, for pharmaceutical products, for filling rig
Force

Max.: 2,740 N

Min.: 12 N

Rotational speed

Max.: 3,400 rpm
(21,362.8 rad.min-1)

Min.: 1,130 rpm
(7,100 rad.min-1)

Description

Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range. Properties Quiet and efficient Rated frequency 1,130 – 3,400 vpm Force 12 – 2,740 N Continuously variable FAL can be used up to 85°C, VTL-155 up to 100°C, remaining VTLs up to 150°C Resistant to extreme environmental conditions Field of application For foodstuffs and pharmaceuticals, complies with FDA specifications (FAL only) Driving conveyor and discharge chutes Loosening or compacting of bulk materials Starting up of mechanical processes Filling facilities
