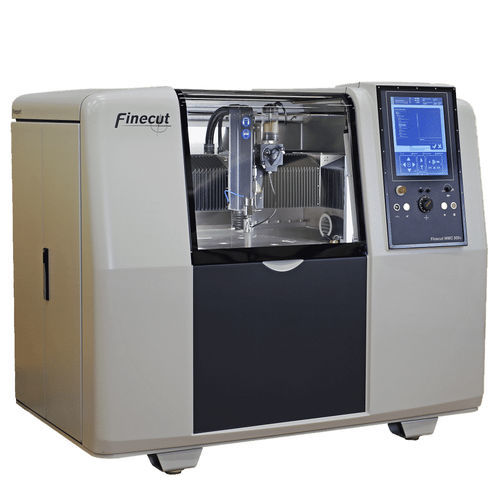

Waterjet cutting machine WMC 500II type 4X

for composite materialscontourturning

Finecut 4-Axis Waterjet Machine, a Micro Abrasive Waterjet, Beyond Cutting Edge. Precision with rotating work piece 4 axis working synchronously Cutting width down to 0.2 mm Live fixturing for cutting part from different sides Rotates workpiece synchronously with cutting High inclination angles Utilizes 5-axis control with tool center point function Cutting With 4 Axis Rotary Table The A-axis can be fitted with a work table plate on which any work piece can be placed. With this mechanism the part can be reoriented to provide access for cutting from different sides of the part. This motion system setup allows the waterjet nozzle to cut along a contour, following the part’s 3D curvature, moving all four axis in synchronous motion. Easy CAD/CAM Programming The machine has a 5-axis waterjet controller with capability for tool center point programming. All these operations are easily programmed using the CAD/CAM software provided with all Finecut waterjet machines. Cutting System Combining 3X Cutting With Rotating Work Piece With our 5-axis motion system, the 3 axis cutting system is supplemented with a capability of turning the workpiece synchronously with the X-Y-Z axis motion of the tool. In our 4 axis waterjet machine a table-mounted A-axis is used to manipulate the work piece. 360 Degree Rotation Of The A-Axis The rotating axis may be fitted with a chuck and be used as a rotary axis, which enables cutting helical geometries, rotational symmetries and contours in rotational parts (tube cutting). The A-axis can be fitted with a work table plate on which any work piece can be placed.
