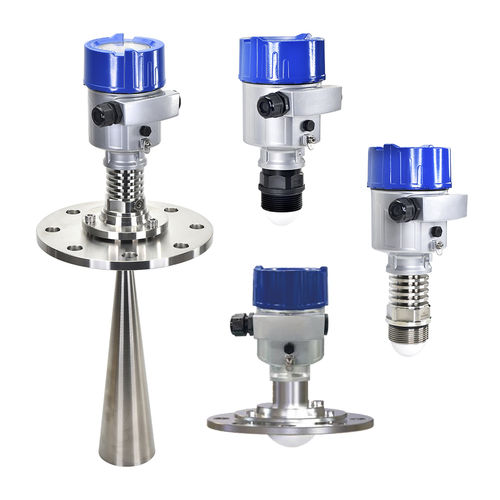

FMCW radar level transmitter JFR series
liquidfor solids2-wire

FMCW radar level transmitter
FMCW radar level transmitter
FMCW radar level transmitter
FMCW radar level transmitter
FMCW radar level transmitter
FMCW radar level transmitter
FMCW radar level transmitter
Add to favorites
Compare this product


Characteristics

Technology
FMCW radar
Medium
liquid, for solids
Interface
2-wire, HART
Applications
for storage tanks, for the food and beverage industry
Other characteristics
stainless steel, high-precision, IP67
Level range

Max.: 70 m
(229'07" )

Min.: 15 m
(49'02" )

Process pressure

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)

Description

FMCW Radar level transmitter is a non contact measuring device, which is suitable for high temp., high pressure, and corrosive applications. It is easy to install and free of maintenance, especially for the high accuracy requirement environment. 。Non contact measuring 。Corrosive and toxic liquid, hydrocarbons, slurries 。Not affected by specific gravity, pressure, temperature, viscosity, foam 。5 digits LCM display 。Indicate signal wave inside the silo. 。Selection of Different Measurement unit(m, cm, mm, inch, Ft, %, mA) 。Measuring distance and actual level. 。Language selection of traditional Chinese, simplified Chinese, English. 。4-20mA / 4 wires / 2 wires 。Modbus RS-485 to enhance isolation and easy for remote control. 。CE standards for isolation(EFT 2000V, B class or better) 。Suitable for mid-range signal 。4mA, 20mA output 。Isolated circuit design.
