Scroll compressor OS series
airelectrically-poweredstationary

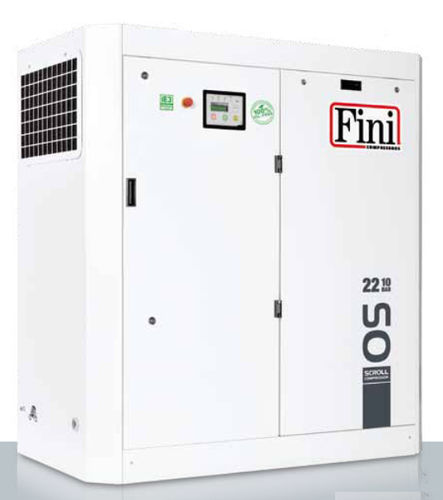

Scroll compressor - OS series - FINI - air / electrically-powered / stationary
Scroll compressor - OS series - FINI - air / electrically-powered / stationary
Scroll compressor - OS series - FINI - air / electrically-powered / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
scroll
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Applications
flexible
Other characteristics
low-noise, high-efficiency, modular
Tank volume

270 l
(71.3 gal)

Pressure

8 bar, 10 bar
(116.03 psi, 145.04 psi)

Flow

Max.: 2,520 l/min
(665.71 us gal/min)

Min.: 210 l/min
(55.48 us gal/min)

Power

Max.: 30 kW
(40.79 hp)

Min.: 11 kW
(14.96 hp)

Description

The new Fini OS multi-scroll range, with power from 11 to 30 kW, with 2 or 4 scroll units, has been completely redesigned to meet the requirements of an increasingly demanding market in terms of silent operation, reliability, easy maintenance and energy saving. A modular system to offer maximum flexibility and satisfy any compressed air requirement in the absolute absence of oil. Thanks to the use of IE3 Premium Efficiency electric motors, the new compressors combine maximum reliability with optimum energy efficiency: the components are placed in a visible and easily accessible position, reducing maintenance times and costs; their extremely low noise operation makes them suitable for installation in any work environment, ensuring operator comfort and safety. The MSC controllers allow flexible and full programming for maximum efficiency and safety: the LCD display indicates compressor operating conditions and includes remote control, auto-restart functions, alarms and routine maintenance information.
