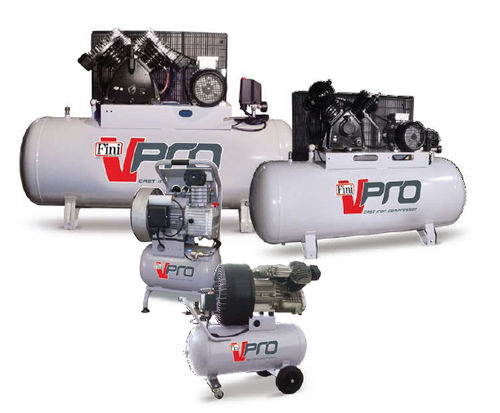

Piston compressor V-PRO series

airwith combustion engineon casters

n Single and double-stage belt-driven compressors with 90° “V” posed cylinders. n Splash lubrication and forced ventilation. n Speed range between 800 and 1100 r.p.m. n Machined run on cast iron cylinders. n Aluminium inter cylinder manifold (in single-stage versions) and aluminium aftercooler for compressed air to the tank. n Oversized delivery pipes in order to slow down speed and temperature on the compressed air into the tank. n Thermal protection switch with manual reset in singlephase versions: built in pressure switch in the threephase versions. n Integrated belt guard. n Quick couplers, pressure switch and reducer directly connected to the tank for ease of operation. n Filtered pressure reduced compressed air. n Ball valve on tank (sizes bigger than 100 liters). n Max pressure 10 bar.
