Butterfly valve FEOV/LM
levershut-offregulating

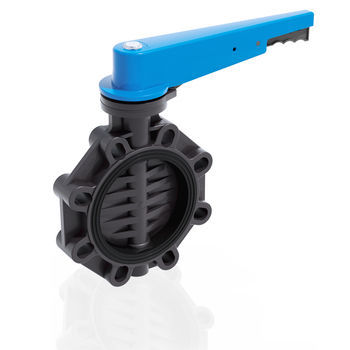

Butterfly valve - FEOV/LM - FIP - Formatura Iniezione Polimeri - lever / shut-off / regulating
Butterfly valve - FEOV/LM - FIP - Formatura Iniezione Polimeri - lever / shut-off / regulating
Butterfly valve - FEOV/LM - FIP - Formatura Iniezione Polimeri - lever / shut-off / regulating - image - 2
Butterfly valve - FEOV/LM - FIP - Formatura Iniezione Polimeri - lever / shut-off / regulating - image - 3
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
lever
Function
shut-off, regulating
Media
for water, for liquid food products and beverages
Body
wafer, stainless steel, EPDM, PVC-U, zinc, NBR
Applications
for food applications, tank bottom
Associated function
discharge
Other characteristics
ISO, standard
DN

Min.: 40 mm
(1.575 in)

Max.: 200 mm
(7.874 in)

Pressure

10 bar, 16 bar
(145 psi, 232.1 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Description

The FE is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable Labelling System. Main features: Ergonomic multifunctional handle in HIPVC with the option for quick operation, graduated adjustment in 12 positions (every 7.5°). 180° reversible mounting Customisable Labelling System: integrated module, made of a transparent protection plug customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to the specific needs Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid. One-piece top flange with PVC-U rack. Drilling according to standard ISO 5211 for direct drive
