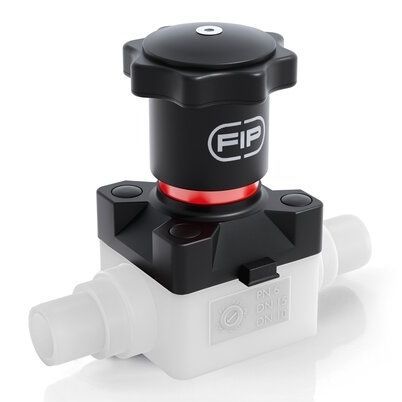

Diaphragm valve CMDF series

manualfor controlfor water

Compact diaphragm valve with male ends for socket welding, metric series. The CM is a manually operated diaphragm valve of reduced dimensions and particularly compact structure, ideal for use in confined spaces. Main features: Handwheel in PA-GR, completely sealed, high mechanical strength with ergonomic grip for optimum manageability Integrated adjustable torque limiter designed to prevent excessive compression of the diaphragm and always guarantee a minimum fluid flow Optical position indicator supplied as standard Bonnet in PA-GR with STAINLESS steel nuts fully protected by plastic plugs to eliminate zones where impurities may accumulate. Internal circular and symmetrical diaphragm sealing area STAINLESS steel bolts, can also be inserted from above Threaded metal inserts for anchoring the valve
