Ball valve COMMON

lever3-waystandard

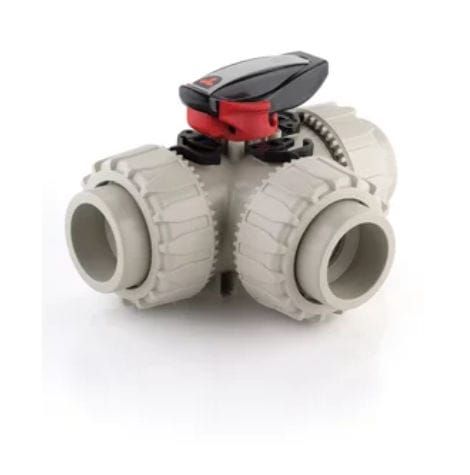

FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications. Main features: Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier. Possibility of installing the LTKD stroke limiter (available as an accessory) that permits ball and handle rotation only for set opening and closing angles at 90° or 180° Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation Ball shutter high surface finish with floating type full passage with T or L port 4 PTFE ball seat system that compensates axial force guaranteeing optimal manageability and long working life
