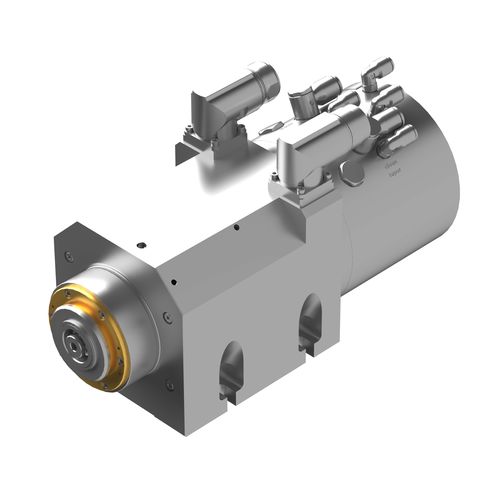

Milling motor spindle MFW-1045AC motorwith automatic tool changerwith pneumatic clamping
Add to favorites
Compare this product
Characteristics
- Function
- milling
- Drive system
- AC motor
- Other characteristics
- with automatic tool changer, with pneumatic clamping
- Rotational speed
Max.: 45,000 rpm
(282,743.34 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
100 mm
(3.9 in)
Description
MFW-1045
TECHNICAL DATA
Diameter - 100 mm
Interface - HSK-E25
Spindle Speed Max - 45'000 rev/min
Weight - 7.6 kg
MOTOR RATING DATA
Motor Type - Async Star
Nominal Speed - 45'000 rev/min
Power S1 / Power S6 20% - 6.30 kW / 15.75 kW
Torque S1 / Torque S6 20% - 2.00 Nm / 5.00 Nm
SPINDLE COOLING
Spindle Shaft Cooling: No
PROCESS COOLING
Cooling Rotary Union: No
BEARING LUBRICATION
Bearing Lubrication: Grease
TOOL CLAMPING SYSTEM
Tool Clamping System: Pneumatic Double-Action
SENSORS
Speed Control: Vector Control
Dilatation Sensor: Optional
Acceleration Sensor: Optional
Tool Detection: Optional
Bearing Temperature Sensor: Optional
