Gas pressure regulator and reducer R series
membranetwo-stagestainless steel

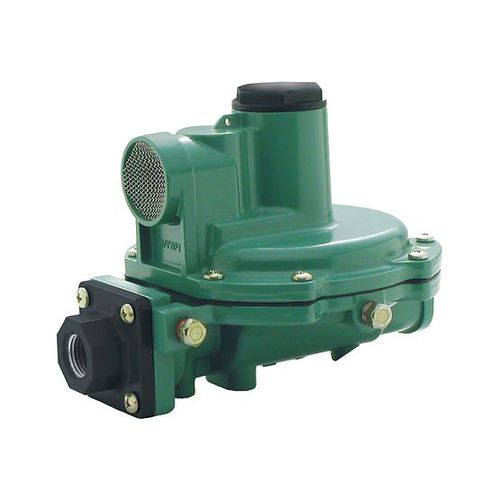

Gas pressure regulator and reducer - R series - FISHER REGULATORS - membrane / two-stage / stainless steel
Gas pressure regulator and reducer - R series - FISHER REGULATORS - membrane / two-stage / stainless steel
Gas pressure regulator and reducer - R series - FISHER REGULATORS - membrane / two-stage / stainless steel - image - 2
Gas pressure regulator and reducer - R series - FISHER REGULATORS - membrane / two-stage / stainless steel - image - 3
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
membrane
Number of stages
two-stage
Material
stainless steel
Applications
industrial
Other characteristics
corrosion-resistant
Pressure

0.69 bar
(10.01 psi)

Orifice diameter

0.5 in, 0.75 in

Temperature

Min.: -29 °C
(-20.2 °F)

Max.: 71 °C
(159.8 °F)

Description

R600 Series second-stage regulators are UL listed designed to reduce the outlet pressure from a first-stage regulator in domestic installations. Type R622 is designed for Two-Stage domestic applications up to 1 400 000 BTU per hour / 15,8 SCMH. Type R622 contains a high performance relief valve and a large 3/4-inch screened vent to limit downstream pressure to less than 2 psig / 0,14 bar in an overpressure situation. Types R642 and R652 are designed in an angle body and back mounted design. Features -Improved Accuracy -Superior Relief Performance -Corrosion-Resistant Materials -Inlet Screen -Test Ports for Easy System Checks -Positive Drainage -20-Year Recommended Replacement Life -UL Listed
