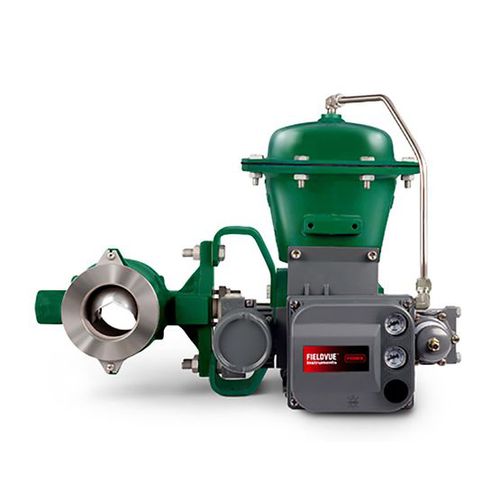

Ball valve Vee-Ball™ V200

pneumatically-operatedfor controlstainless steel

The Fisher Vee-Ball V200 control valve is your best choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure balanced seal designs allow smooth, precise valve operation. Specifications Certifications -SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE Critical Service -Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service Flow Characteristics -Equal Percentage Material -Carbon Steel, Stainless, Duplex, Alloy Operating Temperature -Standard Temperature Pressure Class -ASME Process Connection Type -Flanged Shutoff ClassClass III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2) Valve Size Standard -NPS Other Configurations -Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. Features -Available with flangeless or flanged body style for flexible installation. -The solid HD ball seal construction provides long service life in demanding applications. Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic. -Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156. -Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve. -The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
