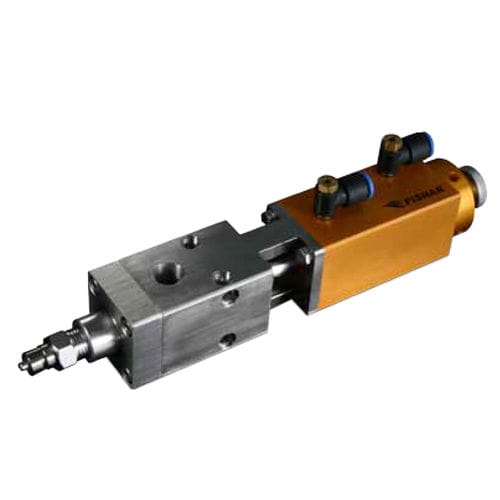

Needle dispensing valve HP600S

pistongrease

The HP600 Small Shot High Pressure Needle Dispensing Valve is a robust long-life solution for dispensing high viscosity materials such as silicone, RTV, sealant and grease. 4-WAY VALVE OPERATION The HP600S is a balanced type “on/off” segmented high-pressure needle valves, which require a model VC1195N 4-way valve controller. Applying a minimum of 56 psi to the air inlet will retract the needle allowing material to flow. Switching the air signal on the controller will return the needle to its seated position closing the valve. • High-pressure fluid input • Adjustable for shot size • 4-way operation - quick shut off • Suitable for very high viscosity fluids • Replaceable seals • Operating air pressure : Max. 60 - 71 psi (4.1 - 4.9 bar) • Fluid delivery pressure : 2,133 psi (147 bar) • Minimum shot size : 0.01 cc • Valve type : Needle • Cylinder body, CAP : AL (hard anodized) • Piston, Check body : STS303 • Chamber : SUS303 • CAP, CV body : AL (hard coated) • Seals : Acetal Teflon • Operating air input : M5 x P0.8, 4 mm fitting ø6 O.D. air hose • Material inlet : 1/4" NPT • Material outlet : 1/4" NPT Luer lock (male) • Weight : 950 g
