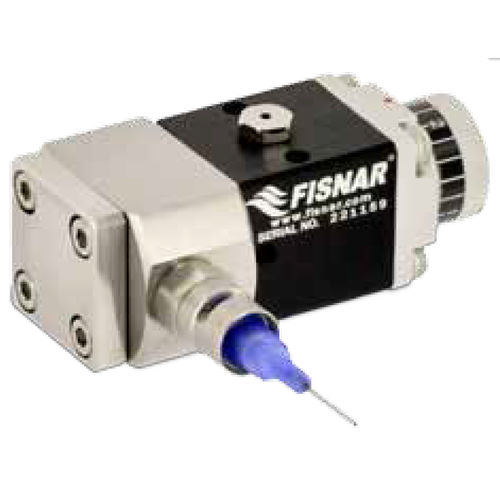

Needle dispensing valve VMP30H

diaphragmpistonspray

The VMP30H is a mini-poppet, pneumatic valve designed for dispensing small shots of medium viscosity materials. Its lightweight and compact design is beneficial for installation in confined work areas. The poppet design minimizes surface area and friction between the valve piston and the material, making it ideal for filled materials and extending the life of the valve seals. • Suck-back effect to eliminate drooling at the end of the needle tip • Suitable for filled materials • Separated wetted part • Stroke adjustment to fine tuning shot size • Operating Air Pressure : 70 - 100 psi • Material Delivery Pressure : 85 psi max • Flow Rate : Max. 1.2 l / min • Valve Body : Aluminum • Valve Piston : SUS303 • Valve Piston Seal : NBR • Chamber, Cap : SUS303 • Diaphragm, Seal : UHMW-PE • O-ring : Viton® • Air Input : M5 x 0.8 • Material Inlet : 1/8” NPT • Material Outlet : Luer Lock • Weight : 162 g
