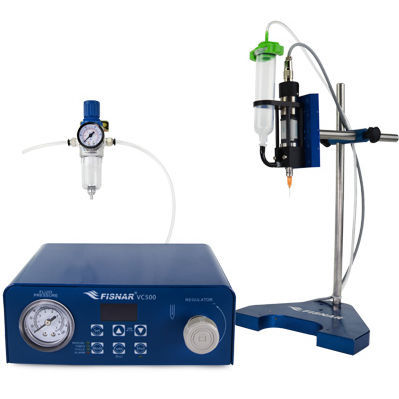

Digital valve controller VC500

dosing

The VC500 is a sophisticated and easy to use valve controller for achieving precise and repeatable dispensing results when using 24V DC auger dispense valves. Dispensing parameters can be quickly entered into the machine using the intuitive navigation buttons, with all programmed values being simultaneously displayed on the multi-line LED screen. A motor delay and reverse function result in a clean cut-off of the fluid material from the auger valve at the end of the dispensing cycle. The I/O interface ensures the controller can be easily and fully integrated with a dispensing robot or into an automated production line with ease. • 1 programmable memory slot • Digital timer control • 0-100 psi fluid pressure regulator & gauge • 3 dispense modes (manual, timed & cycle) • 2 fluid pressure outputs (constant & pulsed) • Multi-line LED display screen • Operator lockout function • Dispense cycle counter • 7 channel I/O circuit for external control and robot integration • Adjustable forward and reverse motor speed control • Dimensions : 7.56” x 5.04” x 3.00” (192 x 128 x 76 mm) • Weight : 2.36 lbs (1.07 kg) • Input AC to Power Supply : 100 - 240 VAC, 50/60 Hz • Cycle Rate : > 400 cycles / min • Relative Humidity : 20 - 90% (No condensation) • Operating Temperature : 50 - 104 °F (10 - 40 °C) • Timer : 0.008 - 999.9 secs • Air Input : 100 psi (7 bar) max • Air Output : 1 - 100 psi (0.07-7 bar) • Standards : CE Approved, UKCA Approved, RoHS Compliant, EMC Compliant
