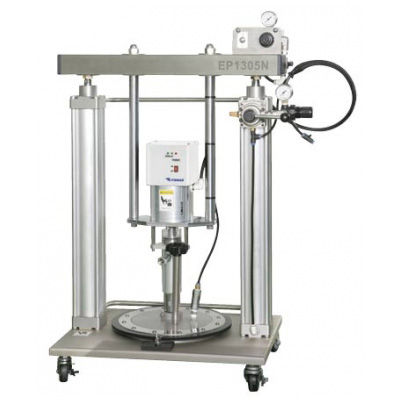

Electric pump EP1305N

hand-primingimpellermobile

The EP1305N is designed for dispensing 5 gallon pails of medium to high viscosity fluid. Ideal for silicones and grease. Systems are rated at 15:1 and provide a maximum of 996 psi regulated material pressure. The extruder pump body is fitted with a follower plate that seals and follows the material as the level drops to wipe the sides of the pail clean, limiting waste. The fluid is pressure-fed by reinforced hoses to a valve that is actuated by a valve controller. The EP1305 utilizes a low-pulse pump design suitable for automatic production dispensing applications, when used with a fluid regulator. These applications require a constant supply of air-free material. Air bubbles and material voids, caused by handling or decanting high viscosity fluids, are prevented. Supplied standard with 20 kg follower plate. FEATURES • Material delivered air free • Wipe-clean action • Air ram assist to help drive material and adjustable air ram pressure • Electrical extruder motor • Simple load mechanism for easy cleaning SPECIFICATIONS • Height Adjustment : 755 mm min-1200 mm max (229.72” min x 47.24” max) • Air Input Pressure : 30 - 100 psi • Fluid Viscosity Range : 10,000 - 600,000 cps • Minimum Volume/Stroke : 0.01 cc/shot • Max Operating Pressure : 50 °C • Air Inlet/Fluid Outlet Size : 1/4” NPT (f) • Wetted Parts : 304 and 17-4 pH Stainless Steel, PTFE, Viton®, PEEK
