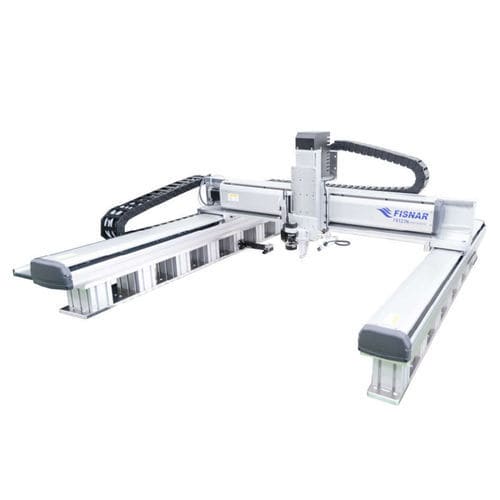

Gantry robot F6000N ADVANCE Series3-axisdispensingfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- gantry
- Number of axes
- 3-axis
- Function
- for assembly, dispensing
- Mounting
- benchtop
- Other characteristics
- vision system
- Payload
20 kg
(44.092 lb)- Reach
800 mm, 1,200 mm
(31.5 in, 47.24 in)- Repeatability
0.05 mm
(0.002 in)- Speed
320 mm/s, 800 mm/s
- Weight
122 kg, 142 kg
(269 lb, 313.1 lb)- Length
156 mm, 965 mm
(6.1 in, 38 in)- Width
1,220 mm, 1,420 mm
(48 in, 55.9 in)
Description
The F6000N ADVANCE gantry robotic systems can be easily integrated with in-line industrial automation. Gantry industrial robots have all their axes above the work area making them ideal for large dispensing applications.
The modular connectivity design allows Fisnar CCD vision system, tip alignment, and height detect kits to be easily incorporated onto the robot for increased productivity and performance.
Programming and control can be carried out via teach pendant, RS232, or proprietary PC software (sold separately).
FEATURES
• Z-axis motor brake mechanism
• Dual linear guide & ball screw mechanism
• AC servo motor drive system with closed loop encoder feedback
• Modular connectivity interface
• Drive Mechanism : Dual Linear Guide / Ball Screw
• Drive System X&Y Axis : Closed Loop Stepper Motor
• Drive System Z-Axis : Closed Loop Stepper Motor with Brake
• Data Memory : 1 - 100 programs / 50,000 points / program
• I/O Signals : 8 inputs / 8 outputs
• External Interface : USB / RS232
