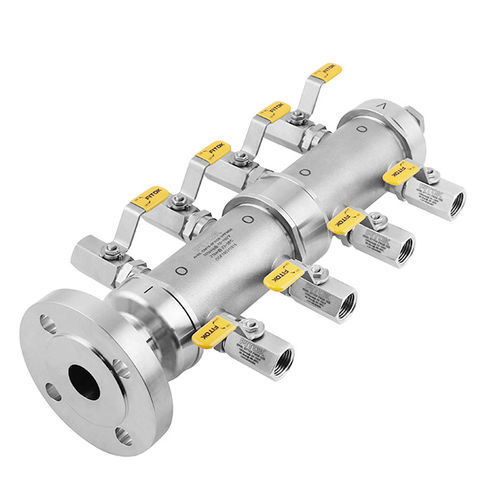

Multi-channel manifold AHSS-AM16-8FNS8-FNS8stainless steeldistributionfemale
Add to favorites
Compare this product
Characteristics
- Number of channels
- multi-channel
- Material
- stainless steel
- Other characteristics
- distribution, female, air, modular, valves
- Operating pressure
1,000 psi
- Port size
0.5 in, 1 in
Description
316 SS, AH Series Air Header, Inlet: NPS 1 Class 150 RF Flange; Outlet: 8 Outlets with Ball Valves , 1/2 Female NPT; Vent: with Plug, 1/2 Female NPT
Compact structure & Modular design facilitates installation, saves time and cost. Additional lines available in the future by adding the AH series standard modules.
TypeComplete Set
Material316 Stainless Steel
Inlet TypeClass 150 RF flange
Outlet TypeFemale NPT
Outlets8
Catalogs
No catalogs are available for this product.
