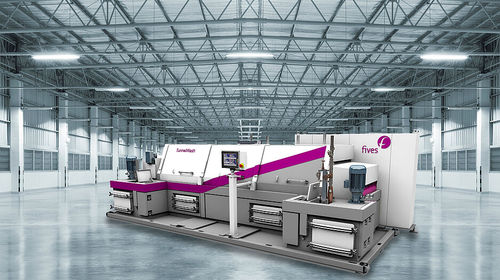

Spray washing machine TUNNELWASH™

processindustrialautomotive

Fives’ TunnelWash™ is a modular, multi-stage, linear conveyorized parts washing system. It is designed as the economical and high-speed solution to support batch cleaning of small parts with uncomplicated geometries, such as gears and small shafts. TunnelWash™ offers shorter cycle times and higher throughput yields. It is thus best suited to perform general cleaning and drying of high-volume prismatic and cylindrical parts up to 610 x 250 mm (24 x 9.8 in). TunnelWash™ features an in-line conveyorized operation for solvent-free, continuous cleaning. Parts to be cleaned are delivered to the washer either manually or via conveyor belt. Parts being transported through the system can either sit freely on the conveyor or be carried as a group of small parts via a wire basket. Once loaded, the parts are driven through a linear tunnel. They pass under a series of strategically placed nozzles that deliver a low-pressure aqueous-based spray (up to 87 PSI/6 bar). Finally, they reach the blow-off station where any residual water is cleared away. MODULAR CONFIGURATIONS TO SUPPORT ANY PRODUCTION LINE TunnelWash™ is a compact, highly flexible, modular solution for cost-efficient high-volume production cleaning in a single, configurable machine. The washer’s modular design can expand to support up to four consecutive treatment zones: wash, rinse, secondary rinse, blow-off. It can also outfit up to four conveyor-driven lanes to simultaneously process a variety of small component types.
