Epoxy pump DR series
fluid greaseelectricstationary

Epoxy pump - DR series  - Fives Cinetic SAS - fluid grease / electric / stationary
Epoxy pump - DR series  - Fives Cinetic SAS - fluid grease / electric / stationary
Add to favorites
Compare this product


Characteristics

Fluid
for epoxy, fluid grease
Operation
electric
Mobility
stationary
Domain
industrial, for the automotive industry
Applications
drum, high-volume, container
Fluid specification
for high-viscosity fluids
Protection level
robust
Other characteristics
with seal
Flow

6 l/min
(1.58503 us gal/min)

Pressure

35 MPa

Length

650 mm
(26 in)

Width

1,160 mm
(45.67 in)

Height

1,615 mm, 2,693 mm
(63.58 in, 106.02 in)

Weight

345 kg
(760.59 lb)

Description

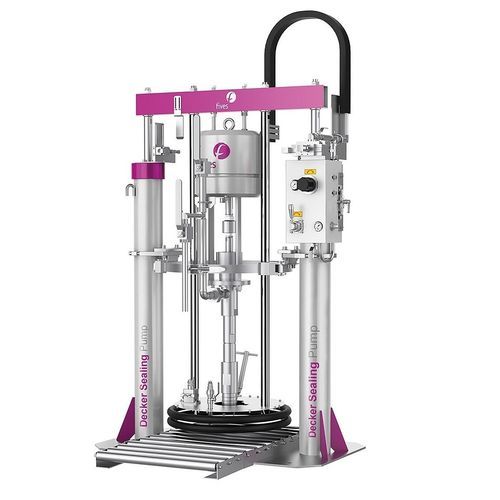

The DeckerSealingTM DR Series is a robust and highly efficient drum supply pump for a 55 gallon container. Built to handle high volumes, this powerful machine can achieve a high pumping ratio of up to 70:1 for high viscosity fluids. This pump is available with either a pneumatic or electrical elevator. Pneumatic elevator technology has been proven in the industry for many years. It is cost effective, does not require an electrical supply and is easy to manage. For applications requiring higher viscosity glues, choose our patented electrical elevator system, which can manage much higher pressure on the plate. Designed to handle butyl, epoxy, grease, mastic, silicone and urethane, the DeckerSealingTM DR is suited to a range of automotive applications, including glazing and bodywork. It has a special seal design for Butyl-based sealant. A range of additional options ensure that the pump meets the needs of your specific application: • Optional heating system • Tungsten inner pump body option • Optional operator safety device with anti-pinching protection
