3-axis CNC milling machine FOREST-LINÉ MODUMILL IE
verticalgantrywith moving table

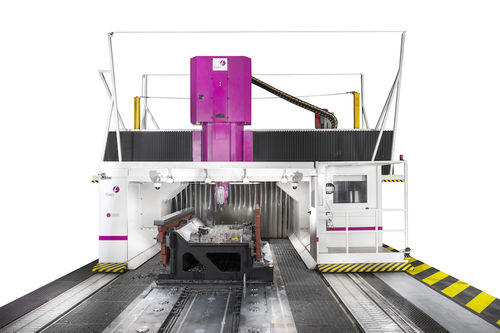

3-axis CNC milling machine - FOREST-LINÉ MODUMILL IE - Fives Machining - vertical / gantry / with moving table
3-axis CNC milling machine - FOREST-LINÉ MODUMILL IE - Fives Machining - vertical / gantry / with moving table
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry, with moving table
Applications
for the aerospace industry, heavy-duty
Other characteristics
precision, high-productivity, CE, high-power, modular
X travel

4,500 mm, 6,500 mm
(177.17 in, 255.91 in)

Y travel

3,500 mm, 4,000 mm, 5,000 mm, 6,000 mm
(137.8 in, 157.48 in, 196.85 in, 236.22 in)

Z travel

1,500 mm, 1,750 mm
(59.06 in, 68.9 in)

Power

45 kW
(61.18 hp)

Description

The Forest-Liné Modumill is a powerful, robust solution for medium to large capacity machining, providing high accuracy and long-term reliability. Highly stiff, engineered for thermal stability and with optimized damping, precision is a priority in this heavy-duty gantry mill. Furthermore, the high accuracy portal machining center is complemented by a modular design that can be adapted to your requirements. Agriculture, Construction & Mining | Defense | Oil & Gas | Rail | Shipbuilding | Transportation Adjustable travel lengths Fixed or adjustable cross rail for machining parts with various heights Separate working areas configurable for pendular machining in order to increase productivity Rotary plate integrated into machine floor plate to further enhance flexibility
