Cone crusher FCB Rhodax®

stationarycompact

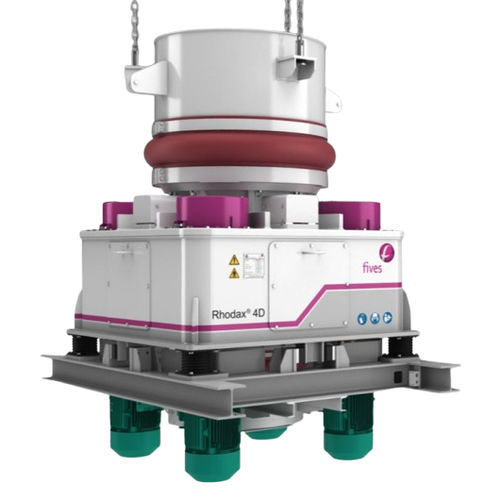

FCB Rhodax® 4D is a vibrating cone crusher. The bowl sub-assembly consists of a frame supporting the bowl liner. The cone sub-assembly consists of a structure supporting a vertical shaft and the cone liner. The cone is suspended to the bowl by means of tie-rods and ball joints and rotates freely inside the bowl. The motion of the bowl is given by 4 unbalanced masses arranged at each corner of the bowl frame. Customer benefits Up to 30% energy savings versus traditional crushing technologies Increased life time of wear parts: 3 times more than a cone crusher Constant product quality: particle size distribution and capacity remain constant during all life time of liners Optimization of the ultrafines production Replaces 2-3 stages of crushing/grinding High liberation ratio for the best beneficiation Recycling of unsold stocks or undesirable fractions Low flakiness index (cubical shape) Technical advantages Control of the grinding force Highest reduction ratio up to 100/1 Adjustable capacity and particle size distribution Low sensitivity to tramp iron Choke fed start and shutdown Low level of noise and no dust emission Compact installation requiring no special civil works for installation Applications Ceramics, Tiles, Fired clay Abrasive materials Silica Ferro-nickel Ferroalloys and silicon metal Steel slag Ilmenite slag Copper slag and ferrochrome Diamond ore Iron ore Phosphates Aggregates Limestone Concrete recycling
