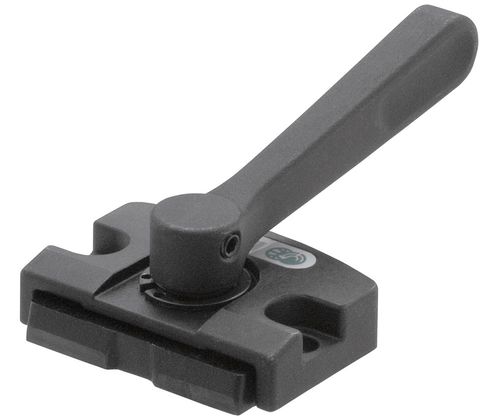

Cam-operated clamp QLSCL
springworkpiecelow-profile

cam-operated clamp

cam-operated clamp

cam-operated clamp

cam-operated clamp

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Type: cam-operated, spring
Applications: workpiece
Other characteristics: steel, low-profile

Description

These low profile cam edge clamps feature a cam that forces the jaws forward for fast and secure workholding. Releasing the cam allows the spring loaded jaws to move back for loading and unloading of the workpiece. The handle allows the user to activate the clamp without the use of tools. The handle can be positioned so it does not interfere with the workpiece. Mounts from the top with two mounting holes. The jaws and cam are made from hardened 4140 alloy steel The body and handle are made from 1045 alloy steel. Black oxide finish.
