Cam-operated clamp BJ161-08001
workpiececompactflanged

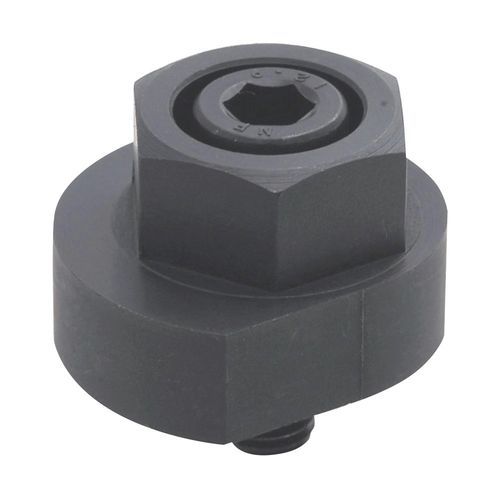

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged - image - 2

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged - image - 3

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged - image - 4

Cam-operated clamp - BJ161-08001 - Fixtureworks - workpiece / compact / flanged - image - 5

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Type: cam-operated
Applications: workpiece
Other characteristics: steel, compact, low-profile, cam, flanged, flange

Description

Compact design for low profile positive clamping. These clamps permit faster loading and unloading of workpiece. To install, lock the flange collar into the cam using the locking screw and then tighten up the cam with a wrench. The cam and locking screw are made from 4135 alloy steel. The flanged collar is made from 1095 alloy steel. Parts are heat treated with a black oxide finish.
