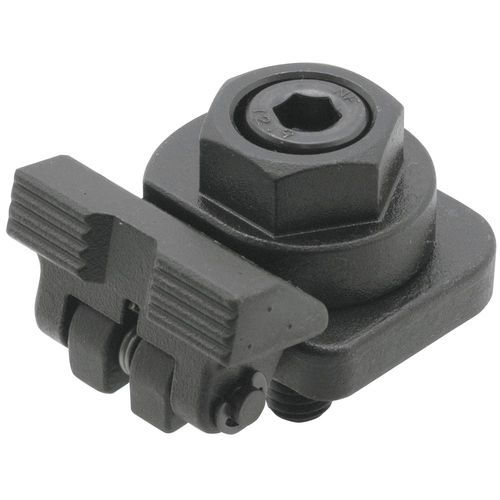

Cam-operated clamp BJ162-08001
workpiecelow-profilesmall

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Type: cam-operated
Applications: workpiece
Other characteristics: steel, low-profile, small, serrated

Description

These cam edge clamps offer a low profile design, high holding forces and easy to use operations. The low profile and small size allow for faster set up and more parts per load. Turning the cam nut on the top of the clamp forces the serrated jaw forward and downward against the workpiece. Easily installs with a socket head cap screw. The body and jaw are made from 4140 alloy steel, heat treated with a black oxide finish. The cam is made from 4135 alloy steel with a black oxide finish.
