Mechanical clamp CP100-08040
steeladjustable

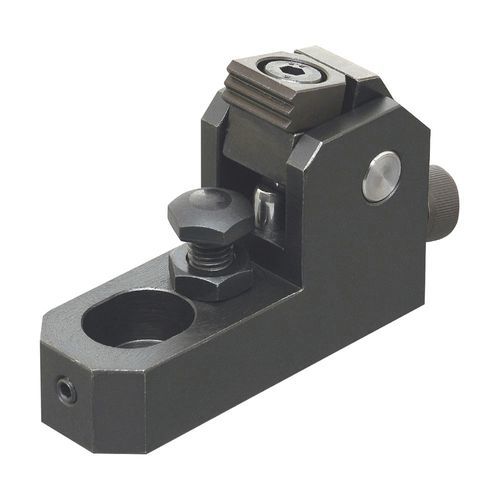

Mechanical clamp - CP100-08040 - Fixtureworks - steel / adjustable

Mechanical clamp - CP100-08040 - Fixtureworks - steel / adjustable

Mechanical clamp - CP100-08040 - Fixtureworks - steel / adjustable - image - 2

Mechanical clamp - CP100-08040 - Fixtureworks - steel / adjustable - image - 3

Mechanical clamp - CP100-08040 - Fixtureworks - steel / adjustable - image - 4

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Type

mechanical

Other characteristics

steel, adjustable

Clamping force

Min.: 5,996 N

Max.: 24,999 N

Description

SIDE CLAMPS - CENTER MOUNT WITH ADJUSTABLE SUPPORT (CP100) These side clamps utilize smaller clamping space which allows for greater machine clearance. Mounting screw can be under the work piece minimizing clamping space. Tightening the ball screw forces the clamp forward and downward. The hex socket set screw works to prevent the clamp from sliding back when clamping. Made from alloy steel with black oxide finish.
