Workpiece clamp CP102-08040
steel

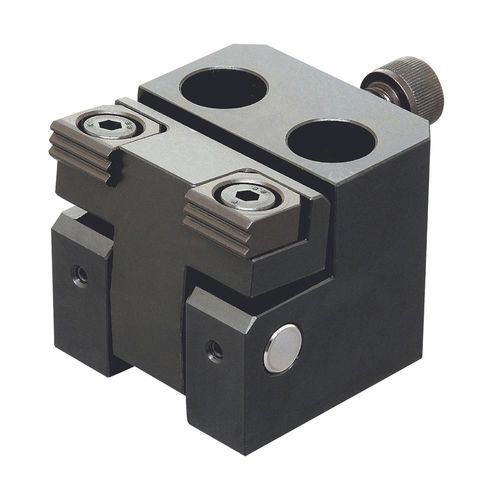

Workpiece clamp - CP102-08040 - Fixtureworks - steel

Workpiece clamp - CP102-08040 - Fixtureworks - steel

Workpiece clamp - CP102-08040 - Fixtureworks - steel - image - 2

Workpiece clamp - CP102-08040 - Fixtureworks - steel - image - 3

Workpiece clamp - CP102-08040 - Fixtureworks - steel - image - 4

Workpiece clamp - CP102-08040 - Fixtureworks - steel - image - 5

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Applications: workpiece
Other characteristics: steel

Description

The jaws move forward and downward as the ball screw is tightened. The jaws swivel 1.5 degrees from center to allow for clamping on uneven surfaces. Tightening the ball screw forces the clamp forward and downward against the workpiece supports and stops. The body is made from 1045 alloy steel. The arm is made from 1045 alloy steel and heat treated. The replaceable jaws are serrated for positive holding and are made from M-2 high speed steel, hardened to Rc 60/62. Parts have black oxide finish.
