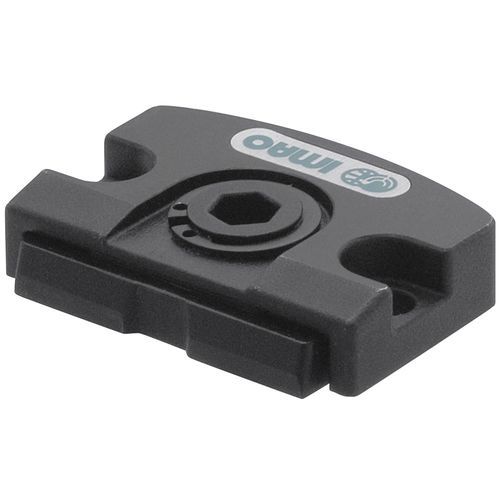

Cam-operated clamp QLSCL10NR
workpiecesteellow-profile

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Type: cam-operated
Applications: workpiece
Other characteristics: steel, low-profile, miniature

Description

SIDE CLAMPS - LOW PROFILE CAM EDGE - WITHOUT HANDLE (QLSCL) These low profile cam edge clamps feature a cam that forces the jaws forward for fast and secure workholding. Releasing the cam allows the spring loaded jaws to move back for loading and unloading of the work piece. The cam is activated with a hex wrench and eliminates work piece interference. Mounts from the top with two mounting holes. The jaws and cam are made from hardened SAE-4140 alloy steel The body is made from SAE-1045 alloy steel. Black oxide finish.
