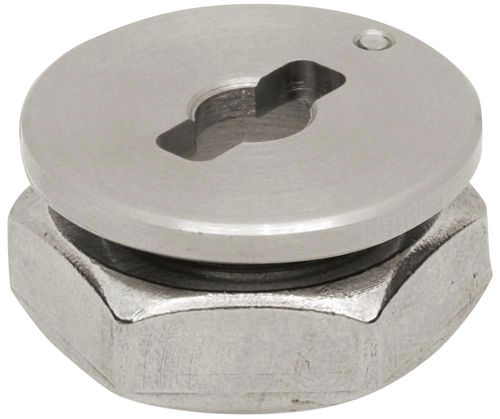

Stainless steel fastener QCTH0525-N

steelquarter-turn

Positive locking in quick change applications where there is frequent insertion and removal of a fastener. They allow for consistent fastening force, eliminating the chance for under or over tightening by the operator. Designed to be used with fasteners QCTH, QCTHL, QCTHH & QCTHA. The fastener is mounted to the fixture and the receptacle is mounted to the base. As the fastener is inserted into the receptacle, the pins on the fastener align with the grooves in the receptacle. The spring in the fastener allow for a range of fixture thicknesses. Turning the knob one quarter turn aligns and locks the fastener into place. The fasteners are marked with “ON” and “OFF” indicators to show the position of the fastening pins. They can be used with locating pins to provide highly accurate positioning. The thin plate style allows back side mounting with the provided hex nut and includes a locating pin to prevent the receptacle from turning. Made from 4140 alloy steel with an electroless nickel plate finish. The nut is made from stainless steel. Quick changeover, perfect for a variety of applications!
