Heavy-duty pin QLPDH400-12-100

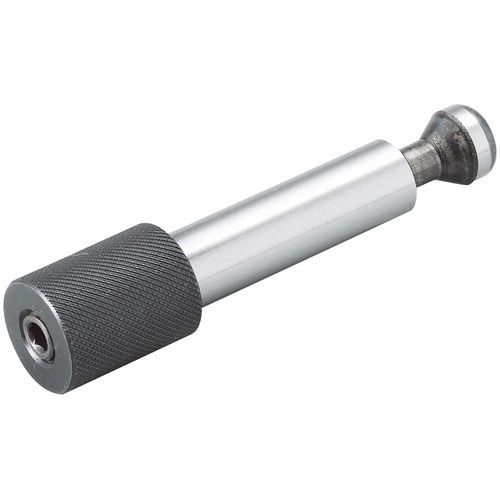

Heavy-duty pin - QLPDH400-12-100 - Fixtureworks

Heavy-duty pin - QLPDH400-12-100 - Fixtureworks

Heavy-duty pin - QLPDH400-12-100 - Fixtureworks - image - 2

Heavy-duty pin - QLPDH400-12-100 - Fixtureworks - image - 3

Heavy-duty pin - QLPDH400-12-100 - Fixtureworks - image - 4

Add to favorites

Compare this product

Go to the Fixtureworks website for more information

Characteristics

Applications: heavy-duty

Description

For use with the Heavy Duty Pull Clamps. The pins are designed to be modified by the user to fit the actual workpiece thickness. The shank is made from 4135 alloy steel, precision ground and the shank end is heat treated. The head is made from 1045, heat treated with a black oxide finish.
