Manually-controlled clamp QLSWC
swingminiature

Manually-controlled clamp - QLSWC - Fixtureworks - swing / miniature
Manually-controlled clamp - QLSWC - Fixtureworks - swing / miniature
Manually-controlled clamp - QLSWC - Fixtureworks - swing / miniature - image - 2
Manually-controlled clamp - QLSWC - Fixtureworks - swing / miniature - image - 3
Add to favorites
Compare this product


Characteristics

Type
manually-controlled
Other characteristics
swing, miniature

Description

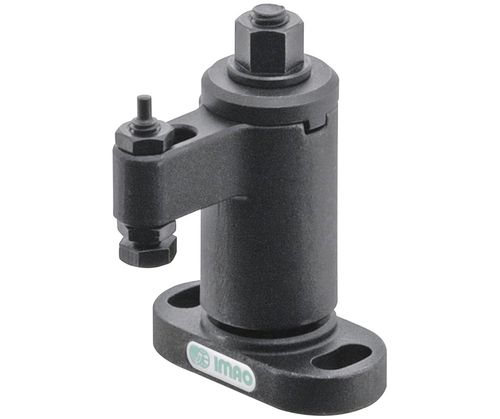

These miniature clamps swing into position and clamp straight down onto the workpiece for direct downward pressure. The arm swings completely out of the way to allow for easy loading and unloading of the workpiece. A torque wrench or a removable handle is used to activate the swing arm and allows the user to apply precise pressure. The flange nut is used to activate the swing arm and allows the user to apply precise pressure by using a torque wrench or a removable handle to avoid interference. Ideal for applications were precise clamping force is required to avoid part distortion. Comes with a contact bolt that can be reversed for finished or rough surfaces. Mounts from the top with two mounting holes. The QLSWC-05 provides up to 517 lbs of clamping force; the QLSWC-06 provides up to 809 lbs of clamping force. The clamp arm swings out of the way in a counter clockwise direction. The body, washer, flange nut and spindle are made from 1045 alloy steel. The clamping arm is made from 4140 alloy steel. Parts are heat treated with a black oxide finish.
