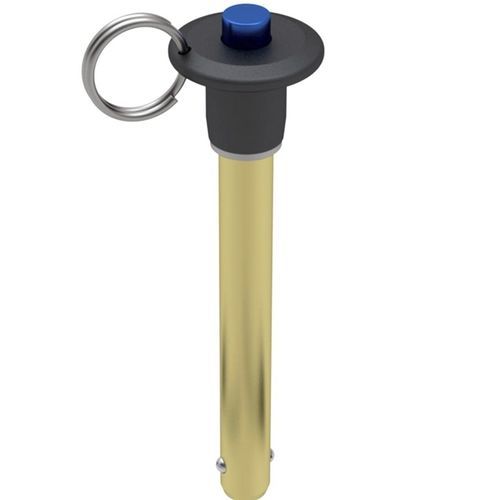

Quick-release pin with button MBAAS-05-010

These positive locking quick release pins have a wide range of uses in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 4130 steel with zinc plating. The handles for the pins listed below are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. For specific application requirements, custom modifications are available for this product line. RoHS compliant.
