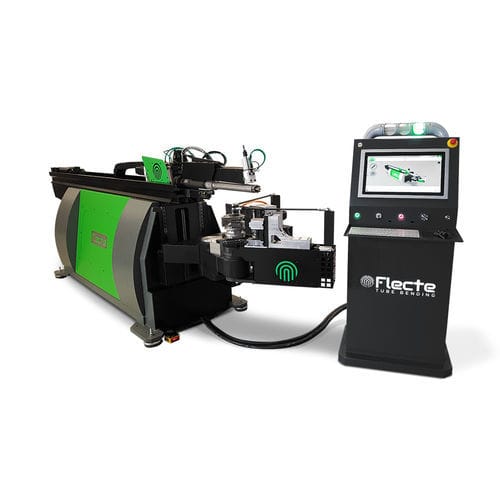

Electric bending machine VEX 259tubeCNC9-axis
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube
- Control
- CNC
- Number of axes
- 9-axis
- Other characteristics
- mandrel
- Bending capacity
Max.: 200 in
Min.: 0 in
- Bending radius
3.5 in, 5.9 in
- Bending length
48 in
- Bending angle
300 °
- Bending force
10 kN
- Accuracy
0.05 °
- Overall length
150 in
- Overall width
37 in
- Total height
59 in
- Weight
3,748 lb
(1,700 kg)- Voltage
400 V
- Total power
12 kW
(16.3 hp)
Description
for a variety of tube profiles with mandrel and roll bending.
Technical data
P1 center - 1 inch (P1)
Clamp passage - 1.1 inch
Axis Velocity
Tube movement - 49.2 inch/sec
Tube rotation - 700 °/sec
Tube offset
23.6 inch/sec
Tube stack
11.8 inch/sec
Tube closing - 7.5 inch/sec
Following block - 19.7 inch/sec
Mandrel - 8.3 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset
0.0020 inch
Tube stack
0.0020 inch
Tube closing
0.0020 inch
Following block
0.0020 inch
Mandrel
0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 1x0.08 inch
Max Iron tube roll bending
0.79x0.08 inch
Max aluminium alloy tube with mandrel - 1.18x0.08 inch
Max aluminium alloy tube roll bending
1x0.08 inch
