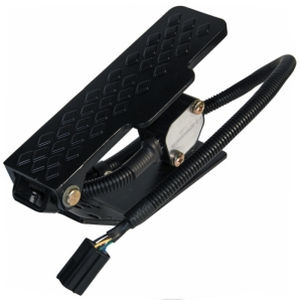

Control pedal 1260 e 1262

Hall effectelectronicsingle pedal

Aluminium throttle pedal floor or wall mountable. This series of pedals is intended for any kind of vehicles. A triple torsion spring is incorporated for idle position return. Made of aluminium, it can be either floor or wall mounted. The electronic circuit is fully protected against water and any kind of contaminants. Thanks to its particular enclosure, a high IP is guaranteed and environmental contamination is minimized. Measuring position is through Hall effect sensor with one or two channels. It is available with any kind of electrical interface: 1 or 2 voltage channels, with or without idle validation switch, PWM, current, CANBus. Upon request, pedal 1260 can be equipped with the kickdown option and can be configured with the desired electrical cable length, number of poles, type of connector.
