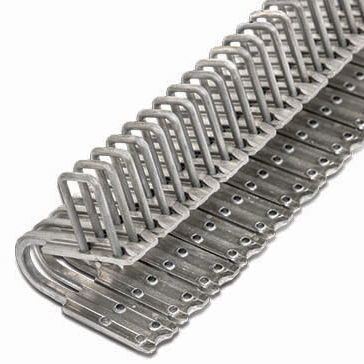

Staple conveyor belt fastener XP™ series

for mining equipmentfor industrial applicationsstainless steel

The Flexco® XP™ Staple Belt Fastening System combines an enhanced applicator tool with the longest wearing staple fastener and hinge pin on the market to produce a superior belt splice for tough mining environments. • Mechanical fastener rating from 800 to 2000PIW (Belt strength 1400 to 3500kN/m) • Belts from 1/4” to 25/32” (6 mm to 20 mm) thick after skive • Pulley diameters from 10” to 20” (250 mm to 500 mm) • For use with solid woven PVG/PVC belting • Sets one fastener at a time with no misdrives and tool jams are infrequent. • Larger loop area accepts bigger pin for easier insertion and extended splice life • Produces smooth, low profile splice for compatibility with belt cleaners and other conveyor components. • Cold rolled steel provides uniform mechanical properties and increased tensile strength of up to 50%. • Integrated guide plate makes loading heavy belts easier. To maximize fastener service life, fastener material must be matched to the application. Flexco manufactures fasteners from a broad range of materials. Our selection makes it easy to specify a fastener that will deliver maximum performance in a variety of conditions—from wet and abrasive applications to highly corrosive environments. Galvanized Steel: For basic applications, galvanized steel is recommended. It is magnetic, offers good abrasion and rust resistance, but is not recommended for corrosive environments. Stainless Steel: Stainless steel provides extra resistance to abrasion, magnetic attraction, and corrosion from acids and other chemicals.
