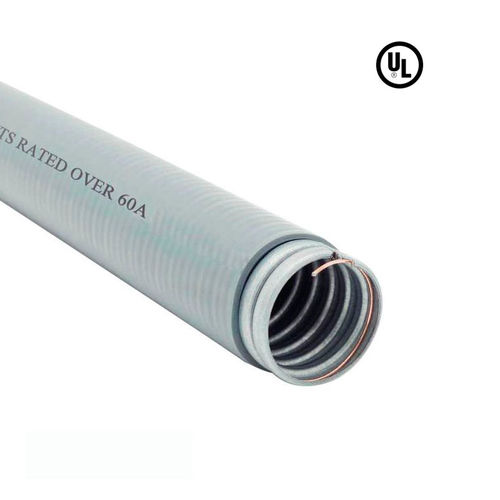

Protection conduit PULTG Series (UL 360)corrugatedtubularfor cables
Add to favorites
Compare this product
Characteristics
- Type
- protection
- Structure
- corrugated, tubular
- Applications
- for cables
- Material
- galvanised steel
- Protection level
- UV-resistant, self-extinguishing, liquid-tight, IP40, IP66, UL
- Other characteristics
- flexible, PVC-coated
- Diameter
Min.: 12 mm
(0.5 in)Max.: 103 mm
(4.1 in)- Temperature
Min.: -20 °C
(-4 °F)Max.: 105 °C
(221 °F)
Description
Applicable for the protection of circuit with 600 volts or lower in locations where UL certificate is required, including commercial buildings, industrial/power plant, shipyards, marine or boat, computer rooms and etc.
Material：Galvanized Steel + PVC Jacket
Temperature Range:
-20℃~+105℃ Dry, 60℃ Wet, 70℃ Oil
-20℃~+80℃ Dry, 60℃ Wet, 70℃ Oil
-20℃~+60℃ Dry, 60℃ Wet, 60℃ Oil
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53)
Jacket Color: Grey (Standard), other colors are available by consult.
Flexibility: Medium
Fire Retardant: Self-extinguishing
UV Resistance: Yes
RoHS Compliance: Yes
Certificate: UL
