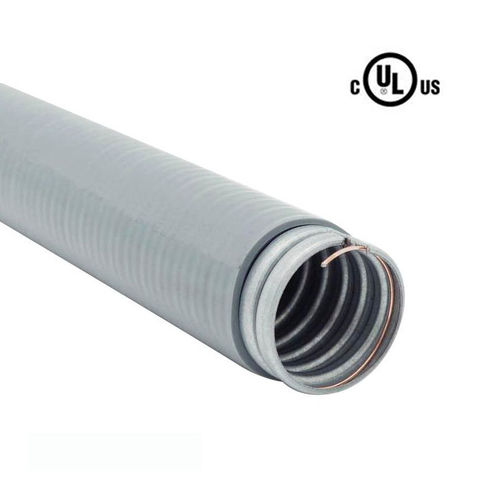

Protection conduit PHLTG Series (UL 360)corrugatedtubularfor cables
Add to favorites
Compare this product
Characteristics
- Type
- protection
- Structure
- corrugated, tubular
- Applications
- for cables
- Material
- galvanised steel
- Protection level
- UV-resistant, self-extinguishing, liquid-tight, IP40, IP66, UL
- Other characteristics
- flexible, PVC-coated
- Diameter
Max.: 103 mm
(4.1 in)Min.: 12 mm
(0.5 in)- Temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Applicable for the protection of circuit with 600 volts or lower in locations where are in higher, lower or large variable temperature and other places, such as commercial buildings, industrial plant, shipyards, marine or boat, computer rooms and etc.
Material：Galvanized Steel + PVC Jacket
Temperature Range: -40℃~+105℃ Dry, 60℃ Wet, 70℃ Oil
IP Rating:
IP 40 (Fit with connector series: S52)
IP 66 (Fit with connector series: S50, S51 & S53)
Jacket Color: Grey (Standard), other colors are available by consult.
Flexibility: Medium
Fire Retardant: Self-extinguishing
UV Resistance: Yes
RoHS Compliance: Yes
