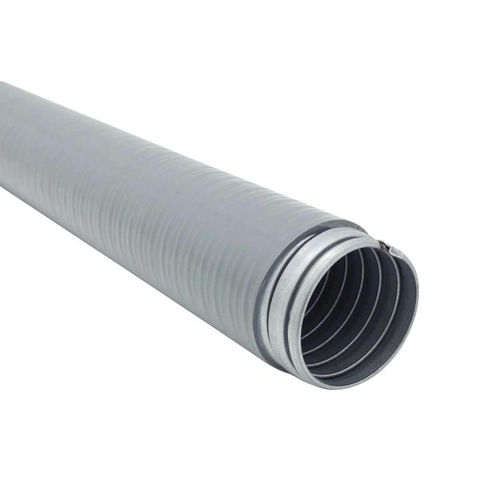

Protection conduit PLTG23PVC Series
corrugatedtubularfor electrical cables

protection conduit
protection conduit
protection conduit
protection conduit
Add to favorites
Compare this product


Characteristics

Type
protection
Structure
corrugated, tubular
Applications
for electrical cables
Material
galvanised steel
Protection level
liquid-tight
Diameter

Min.: 12 mm
(0.5 in)

Max.: 53 mm
(2.1 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

The full range of product is developed by following the conduit size of UL360 standard with excellent tensile and impact resistance for applications where are more critical in environment conditions. Applicable for the protection of circuit with 600 volt or lower in locations where no UL certification is required, including commercial buildings, industrial plant, shipyards, marine or boat, computer rooms and etc.. Material：Galvanized Steel + PVC Jacket Temperature Range: -20℃~+80℃ IP Rating: IP 40 (Fit with connector series: XS52) IP 66 (Fit with connector series: XS50, XS51 & XS53) Jacket Color: Grey (Standard), other colors are available by consult. Flexibility: High Fire Retardant: Self-extinguishing UV Resistance: Yes RoHS Compliance: Yes
