Chain conveyor XK
horizontalverticalfor the food industry

chain conveyor
chain conveyor
Add to favorites
Compare this product


Characteristics

Technology
chain
Form
horizontal, vertical
Sector
for the food industry, for the pharmaceutical industry, for the automotive industry, medical
Transported product
coffee, carton, for bottles, for cans
Other characteristics
aluminum, distribution
Maximum load

800 kg
(1,763.698 lb)

Speed

60,000 mm/min
(39.37 in/s)

Effective width

150 mm
(6 in)

Description

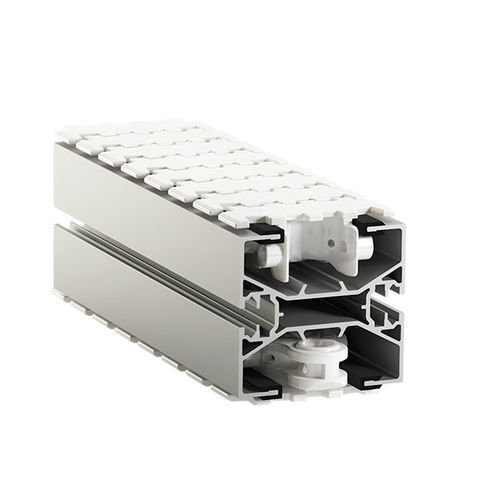

The plastic chain conveyor system XK with aluminum beam permits horizontal as well as vertical distribution. ​The multi-flexing XK plastic chain conveyor system with an aluminum beam permits horizontal and vertical distribution of products. The conveying system's tight vertical bends save floor space by enabling multilevel transportation and making access easy for operators. The standard conveyor chain width is 150 mm, and the conveyed products vary from a few grams up to 30 kg, in many shapes. The collection of standard components guarantees the design of a customized conveyor solution with a fast delivery time. The conveyor can be configured with a suitable chain according to the production requirements, e.g., temperature, strength, etc. Packaging Type Asymmetric, rectangular, round, symmetric Product stateClean, dirty, dry, wet Product range Max product width (mm)300 Min product width (mm)50 Production environment Environment typeDry Operating temperature (°C)-20 to +60
